Electrical
Shore Power Hookup
Exterior power hookup for campground, generator, or outlet power
Supplies external power to your power system inside the vehicle.

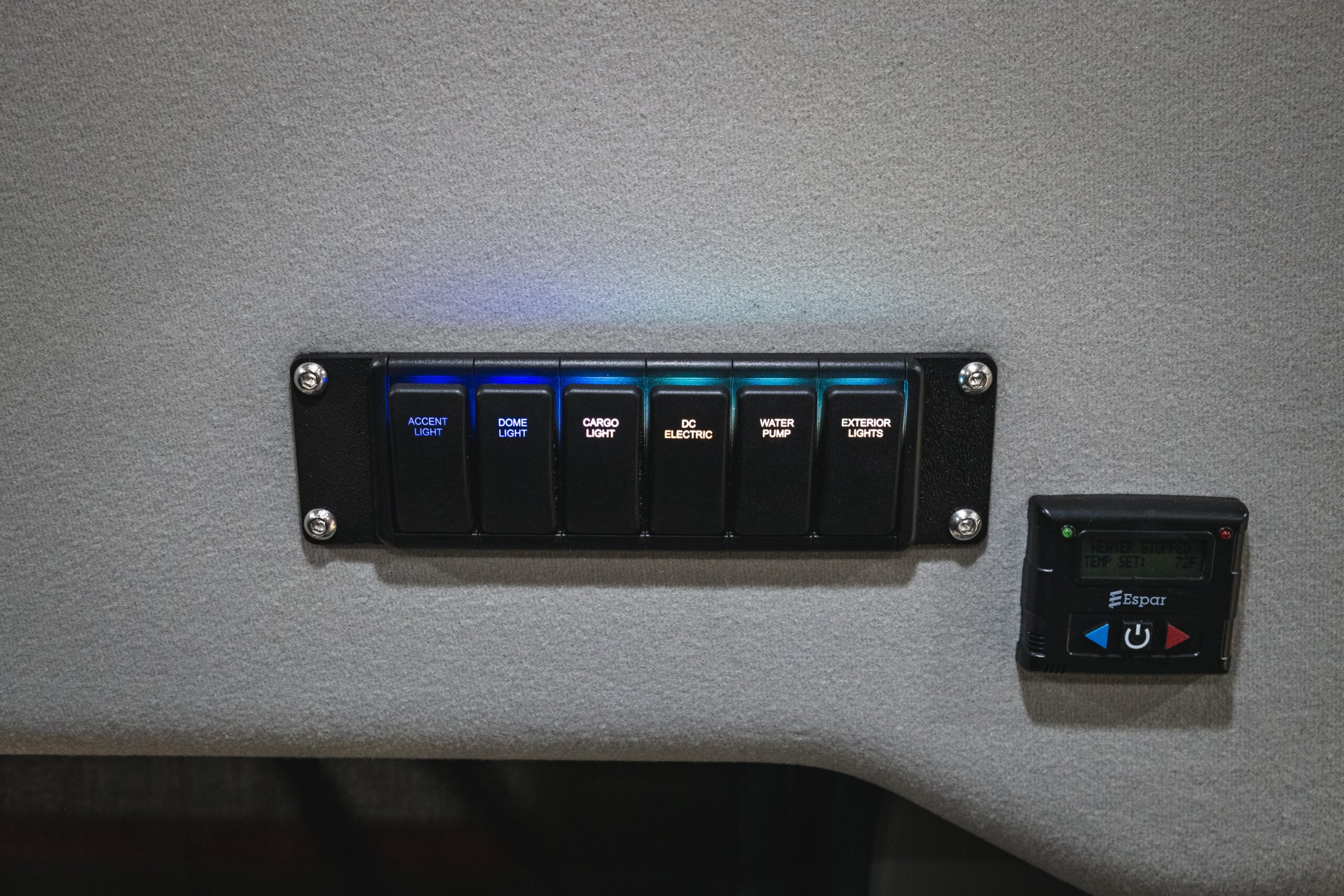

Three Position Rocker Switch Control
- Built to resist corrosion and abuse, located at the driver seat, sliding door and rear door.
*Required for any Electrical Install
AGM 300 Amp Hour Power System
- AGM power system offers the ability of running small to medium sized components inside the van for a moderate period of time. Using standard equipment throughout the van that includes lighting, radio, tv, and moderate use of the AC 110 outlets will last you an estimated 24 – 36 hours before need of solar charging or shore
Features of System:
- 3 in 1 – 2000 Watt Inverter Charger Control. 3 in 1 system combining an inverter, battery charger, and automatic transfer switch.
- 2000 watt pure sine wave inverter
- High inverter efficiency – 90%100 amp battery converter/charger
- 100 amp automatic transfer switch
- 300 Amp hours of battery storage capacity with AGM deep cycle batteries. Consists of 3, 100 AH batteries
- Battery Management System (BMS) provides real-time data on the system, including battery level, charging, and inverter function. Bluetooth connectivity and app allow for easy monitoring of the system, even while away from the van.
- *Air Conditioning is unable to be ran on the AGM system. Large Appliances at or above 1,200 watts will have a limited run time on AGM systems.”.
Lithium 460 Amp Hour Power System
Lithium Ion batteries have a high energy density, offering savings of up to 70 % in volume and weight compared to traditional lead-acid (AGM) batteries. They are perfect for cyclic applications, making over 2000 cycles with very deep (80 %) discharges, effectively storing 5 times as much energy over its lifespan compared to lead-acid. 460 amp hours of lithium is equivalent to 940 amp hours of lead acid.
Features of System:
- Mastervolt inverter/charger combinations integrate a powerful battery charger, a quiet and efficient inverter and a versatile switching system in one robust, lightweight and compact device. This multi-faceted product offers a carefree power supply for recreational and professional use.
- If you require more power than shore power can provide, the Mastervolt Combimaster inverter will make up the shortfall by inverting power from the battery.
- The Combimaster also ensures that the battery is recharged once the peak demand has passed.
- The inverter offers the full capacity of the battery–2,000 watts of continuous power–even in extreme ambient temperatures.
- Pure sine wave energy and a peak capacity of 200% guarantee a problem-free start, even for the heaviest loads.
- The built-in battery charger uses Mastervolt’s proven 3-step+ charging technology to allow the optimal charging of the Mastervolt batteries.
*New Feature: An emergency relay allows you to jump-start your chassis battery from the Mastervolt system by connecting for approximately 1 minute. The charging capacity from the alternator sends 100 amps of power to the lithium system while the van is running.
*New Feature: A new kill switch relay isolates the batteries, making storage or winterizing the system a simple process.
Ground Solar Plug With Solar Controller
- Solar Weatherproof SAE Socket Sidewall Port. Allows easy hookup of any portable solar panel with a SAE Connector.
Upgraded MPPT Solar Controller
The MPPT controller is a more sophisticated and that will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement of the battery plus load.
The MPPT solar controller is 30% more efficient than the previous generation of controllers. It also includes a more robust app to give you monitoring capability on your phone.
Off-Grid Smart Solar
- 200 Watt Roof Mounted Solar
- (2) 100 watt solar panels mounted to roof rails or rack
- 200 Watt Additional Roof Mounted Solar
- (2) 100 watt solar panels mounted to roof rails or rack
- Ground Solar Plug / with solar controller
- Solar Weatherproof SAE Socket Sidewall Port. Allows easy hookup of any portable solar panel with a SAE Connector
*(600 watts) fit on roof rack depending on roof layout
